- Size: 0.25CBM
- Place of Origin: Shandong,China
- Brand Name: Fusai
- Model Number: FSMS12GNS1
- Weight: 370.000 kg

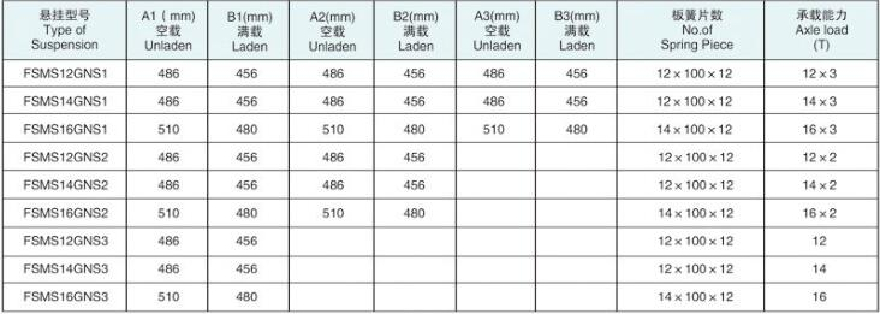

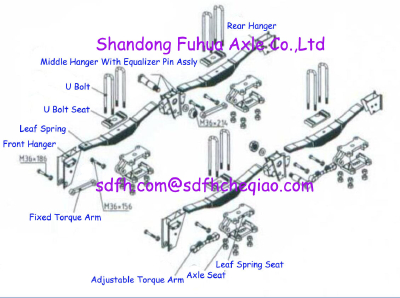

Technical data of suspension
1).w*t*leaf no.:12*100*12 /16*90*8
2).Weight:630kg
3).Pin:50mm/60mm /70mm
4).Hangers: material Q235; thickness 6mm,8mm;10mm for option
5). Equalizer: thickness 10mm ,12mm for option
6).Height of Towing Plate: 1180 mm
7). Capacity:13T and 16T for choose
8). Axle no.:1 axle; 2axles; 3axles and 4 axles for choose
9). Mounting height :designed by customer
10). Axle type:For 127mm;150mm square axle and 127mm round axle
11). Installed type:Over slung and under slung for choose
12). Remark:We can produce according to your samples, drawings
